Grids

Please note: If you are using a 3.x CMS, please use the following link: Grids

The CMS presents many of the entities (Layouts, Media, Campaigns) as tabular data called Grids. Each grid has a number of elements that combine to create a flexible administration tool that is easy to read and understand.

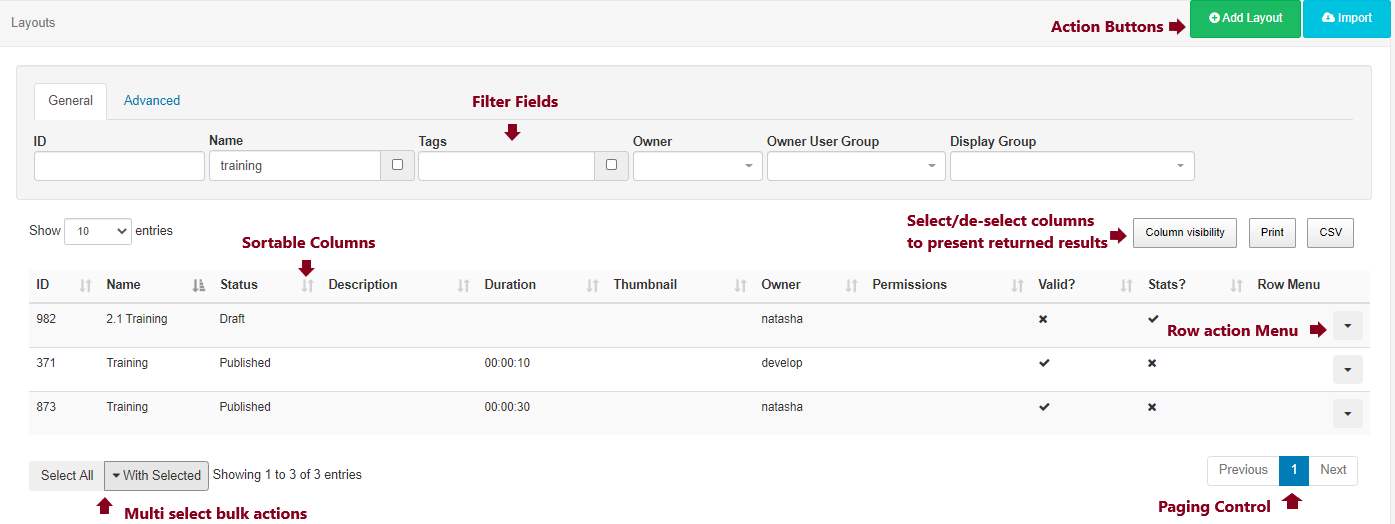

The diagram below is the Layout Grid annotated with each of its elements:

CMS Grids

Action Buttons

Action buttons located at the top right of the page allow for common actions.

Filter Fields

Most grids have Filter Fields which can be used to restrict the results in some way - for example filtering all Layouts belonging to a particular Owner and/or by Tag.

Results

Once the CMS has searched for the criteria included in the filter fields, results will be shown in the grid data table. Use the Column visibility button to select/de-select which columns should be presented in the data table.

Sortable Columns

Most columns can be sorted by default. Where the column has an up or down arrow the Shift key can be used to multi-sort the column.

Row Menu

Each row can also have an Action Menu for things that can be done to that specific row. This menu can be accessed by clicking the down arrow in the right-most column of each row.

Multi-select

Some grids include the ability to multi-select rows and perform bulk actions. These are actions that can be run on all of the selected rows at the same time. Click on rows to select and highlight and use the With Selected drop-down button, located at the bottom of the grid, to access the bulk action menu for your selected rows.

Paging

If available a paging control will be shown that allows the User to switch between multiple pages of results.
