Countdown

Display a countdown for a selected duration or until a specified date on Layouts.

Add Widget

Locate Countdown from the Widget toolbar and click to Add or Grab to drag and drop to a Region.

On adding, configuration options are shown in the properties panel:

  • Provide a Name for ease of identification.
  • Choose to override the default duration if required.

Configuration

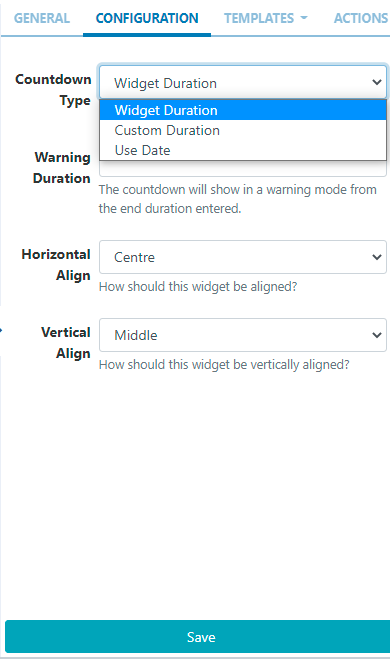

Use the drop-down menu to select the type of countdown to display:

Countdown Type

  • Widget Duration - The countdown will be determined by the duration of the Widget.
  • Custom Duration - Set a countdown duration in seconds.
  • Use Date - Countdown to a selected date and time.

Use the Warning Date to set at which point the countdown will change to a 'warning mode' for the remainder of the countdown.

The "warning" and "finished" status can be styled using the CSS style sheet on overriding a Template.

Templates

Click on the Templates tab and select from one of the preset templates available from the drop down menu.

Templates

Editing Preset Templates

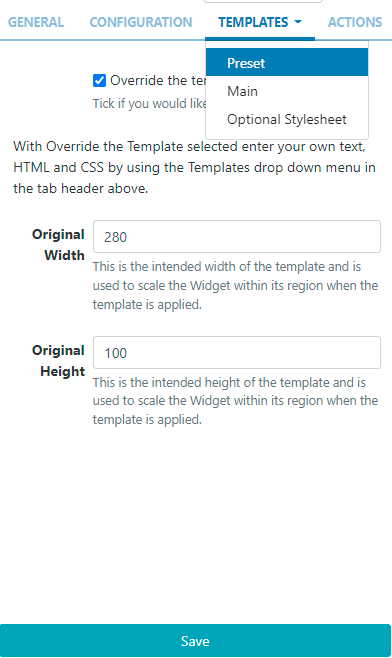

Preset templates can be edited by clicking in the Override the template checkbox.

The template will be automatically scaled and should be designed for the intended output resolution. The following guidelines should be considered when editing templates:

  • Templates must be designed at a fixed size
  • All elements must use absolute sizing in px, including fonts, margins, widths, heights, etc
  • If positioning is used, it must be from top,left
  • Templates can use bootstrap
  • The aspect ratio will be fixed by Sigme and sized to fit the Region
  • Templates are treated the same as a static image

With override template selected, you can enter text, HTML and CSS.

Once override has been selected, click back on the Templates tab to select the templates to edit:

Override Template

Optional Stylesheet

This is the CSS to apply to the template structure above.

Actions

Interactive Actions can be attached to this Countdown Widget from the Actions tab. Please see the Interactive Actions page for more information.

Additional Information

Sigme should accept any date format that is in a correct PHP date format, the following characters are recognised and can be used:

Format Character Description Example returned values
Day
d Day of the month, 2 digits with leading zeros 01 to 31
D A textual representation of a day, three letters Mon through Sun
j Day of the month without leading zeros 1 to 31
l (lowercase ‘L’) A full textual representation of the day of the week Sunday through Saturday
N ISO-8601 numeric representation of the day of the week (added in PHP 5.1.0) 1 (for Monday) through 7 (for Sunday)
S English ordinal suffix for the day of the month, 2 characters st, nd, rd or th. Works well with j
w Numeric representation of the day of the week 0 (for Sunday) through 6 (for Saturday)
z The day of the year (starting from 0) 0 through 365
Week
W ISO-8601 week number of year, weeks starting on Monday (added in PHP 4.1.0) 42 (the 42nd week in the year)
Month
F A full textual representation of a month, such as January or March January through December
m Numeric representation of a month, with leading zeros 01 through 12
M A short textual representation of a month, three letters Jan through Dec
n Numeric representation of a month, without leading zeros 1 through 12
t Number of days in the given month 28 through 31
Year
L Whether it’s a leap year 1 if it is a leap year, 0 otherwise.
o ISO-8601 year number. This has the same value as Y, except that if the ISO week number (W) belongs to the previous or next year, that year is used instead. (added in PHP 5.1.0) 1999 or 2003
Y A full numeric representation of a year, 4 digits 1999 or 2003
y A two digit representation of a year 99 or 0
Time
a Lowercase Ante meridiem and Post meridiem am or pm
A Uppercase Ante meridiem and Post meridiem AM or PM
B Swatch Internet time 000 through 999
g 12-hour format of an hour without leading zeros 1 through 12
G 24-hour format of an hour without leading zeros 0 through 23
h 12-hour format of an hour with leading zeros 01 through 12
H 24-hour format of an hour with leading zeros 00 through 23
i Minutes with leading zeros 00 to 59
s Seconds, with leading zeros 00 through 59
u Microseconds (added in PHP 5.2.2). Note that date() will always generate 000000 since it takes an integer parameter, whereas DateTime::format() does support microseconds if DateTime was created with microseconds. 654321
Timezone
e Timezone identifier (added in PHP 5.1.0) UTC, GMT, Atlantic/Azores
I (capital i) Whether or not the date is in daylight saving time 1 if Daylight Saving Time, 0 otherwise.
O Difference to Greenwich time (GMT) in hours +0200
P Difference to Greenwich time (GMT) with colon between hours and minutes (added in PHP 5.1.3) +02:00
T Timezone abbreviation EST, MDT …
Z Timezone offset in seconds. The offset for timezones west of UTC is always negative, and for those east of UTC is always positive. -43200 through 50400
Full Date/Time
c ISO 8601 date (added in PHP 5) 2004-02-12T15:19:21+00:00
r » RFC 2822 formatted date Thu, 21 Dec 2000 16:01:07 +0200
