Twitter

Display Twitter feeds on Layouts.

The Twitter Module provides access to the Twitter Search API. Granted access is to read data only!

Installation

Access to the Twitter API is protected and so users must register for an API key which is then entered into the Twitter Module in the Sigme CMS.

Connecting to Twitter

  • Obtain an API key and API secret from Twitter and then log in to your Twitter account.

Please note: You will need to apply for a Twitter developer account if you are not already approved, using the above Twitter link.

  • Complete the required fields and accept the Terms of Service.
  • Solve the CAPTCHA and submit the form.
  • Make a note of the generated consumer key (API key) and consumer secret (API secret).

Twitter Module Installation

  • Select the Modules page under the Administration section and install the Twitter Module.
  • Once installed click on the row menu for the Twitter Module and click Edit.
  • Enter the generated API key and API secret.
  • Optionally adjust the Cache Period to determine how long to cache a results set for each Twitter search.

Setting a low value can cause your access to the Twitter API to be disabled for generating too many requests.

Add Widget

Locate Twitter from the Widget toolbar and click to Add or Grab to drag and drop to a Region.

On adding, configuration options are shown in the properties panel:

  • Provide a Name for ease of identification.
  • Choose to override the default duration if required.
  • Select whether the duration is to be per item or leave unticked to set the duration per feed.

Configuration

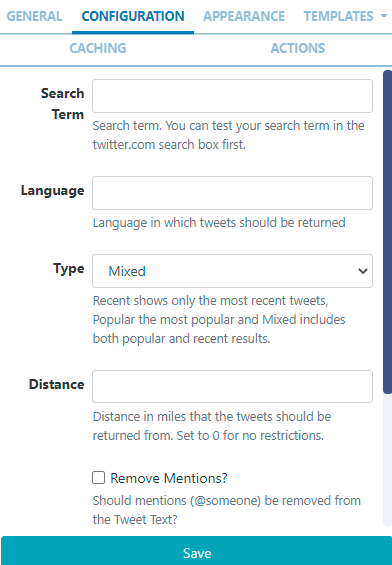

Twitter Configuration

  • Provide a Search Term to return applicable Tweets

Check to make sure your search term is valid before entering here by using the twitter.com search box!

To return Tweets from a specific account rather than all Tweets that contain the accounts @ handle, use from: before the name of the account in the Search Term field.

  • Select the Language to use
  • Use the drop down to select the Type of Tweets to be returned; based on popularity, most recent or a mixed.
  • Select the Distance in miles, away from your location Tweets should be returned from. 0 has no restrictions.
  • Use the tick box if Mentions (@someone) should be removed from the returned Tweet text.
  • Use the tick box if Hashtags (#something) should be removed from the returned Tweet text.
  • Use the tick box to remove URLs from returned Tweet Text.

Most URL's do not compliment Digital Signage!

Appearance

  • Optionally add a Background Colour.
  • Specify the number of Tweets to return, left blank will return the default number of 15
  • Select the number of Tweets to show Per Page, left blank will show the default number of 5 Tweets.
  • Apply a Date Format to be used for returned results (see Additional Information at the bottom of page).
  • Select an optional Effect and Speed to be used to transition between tweets.

Templates

Select from the available Templates:

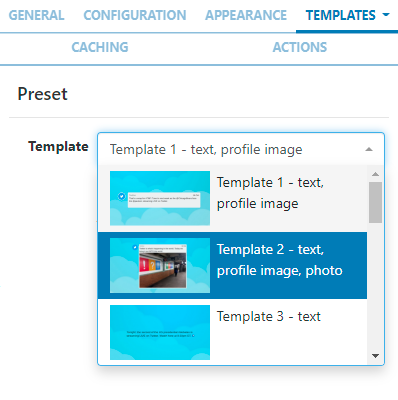

Preset - use the drop down to select one of the preset templates:

Preset Templates

Click to Override the selected template if required. Please see the section on Editing Preset Templates below for further information.

  • No Tweets Message provide a message to display when there are no Tweets to return based on the search query.

Editing Preset Templates

Templates can be edited by selecting a Template using the drop-down and clicking in the Override the template checkbox.

The template will be automatically scaled and should be designed for the intended output resolution. The following guidelines should be considered when editing templates:

  • Templates must be designed at a fixed size
  • All elements must use absolute sizing in px, including fonts, margins, widths, heights, etc
  • If positioning is used, it must be from top,left
  • Templates can use bootstrap
  • The aspect ratio will be fixed by Sigme and sized to fit the Region
  • Templates are treated the same as a static image

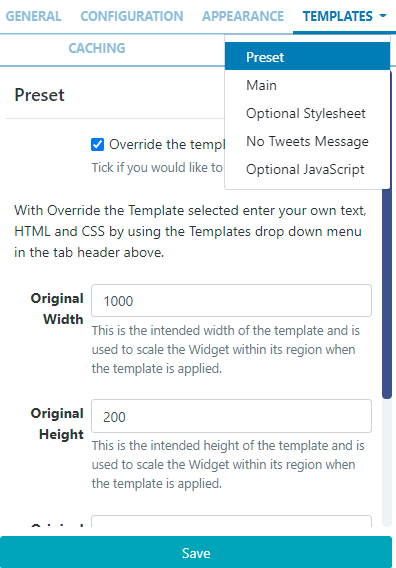

Once override has been selected, click back on the Templates tab to select templates to edit:

Twitter Override the Template

Main - Toggle On the Visual editor to access the inline editor to enter text and formatting or provide text/HTML in the box provided.

  • Use the Snippets menu to include merge text fields.

Optional Stylesheet - This is the CSS to apply to the template structure above.

This optional template is intended for advanced users to 'tweak' the CMS generated output!

Caching

Include a suitable time for the Update Interval in minutes, keeping it as high as possible. This determines how often the Module will request data from the feed.

Actions

Available from v3.0.0

Interactive Actions can be attached to this Twitter Widget from the Actions tab. Please see the Interactive Actions page for more information.

Date Format - PHP

Sigme should accept any date format that is in a correct PHP date format, the following characters are recognised and can be used:

Format Character Description Example returned values
Day
d Day of the month, 2 digits with leading zeros 01 to 31
D A textual representation of a day, three letters Mon through Sun
j Day of the month without leading zeros 1 to 31
l (lowercase ‘L’) A full textual representation of the day of the week Sunday through Saturday
N ISO-8601 numeric representation of the day of the week (added in PHP 5.1.0) 1 (for Monday) through 7 (for Sunday)
S English ordinal suffix for the day of the month, 2 characters st, nd, rd or th. Works well with j
w Numeric representation of the day of the week 0 (for Sunday) through 6 (for Saturday)
z The day of the year (starting from 0) 0 through 365
Week
W ISO-8601 week number of year, weeks starting on Monday (added in PHP 4.1.0) 42 (the 42nd week in the year)
Month
F A full textual representation of a month, such as January or March January through December
m Numeric representation of a month, with leading zeros 01 through 12
M A short textual representation of a month, three letters Jan through Dec
n Numeric representation of a month, without leading zeros 1 through 12
t Number of days in the given month 28 through 31
Year
L Whether it’s a leap year 1 if it is a leap year, 0 otherwise.
o ISO-8601 year number. This has the same value as Y, except that if the ISO week number (W) belongs to the previous or next year, that year is used instead. (added in PHP 5.1.0) 1999 or 2003
Y A full numeric representation of a year, 4 digits 1999 or 2003
y A two digit representation of a year 99 or 0
Time
a Lowercase Ante meridiem and Post meridiem am or pm
A Uppercase Ante meridiem and Post meridiem AM or PM
B Swatch Internet time 000 through 999
g 12-hour format of an hour without leading zeros 1 through 12
G 24-hour format of an hour without leading zeros 0 through 23
h 12-hour format of an hour with leading zeros 01 through 12
H 24-hour format of an hour with leading zeros 00 through 23
i Minutes with leading zeros 00 to 59
s Seconds, with leading zeros 00 through 59
u Microseconds (added in PHP 5.2.2). Note that date() will always generate 000000 since it takes an integer parameter, whereas DateTime::format() does support microseconds if DateTime was created with microseconds. 654321
Timezone
e Timezone identifier (added in PHP 5.1.0) UTC, GMT, Atlantic/Azores
I (capital i) Whether or not the date is in daylight saving time 1 if Daylight Saving Time, 0 otherwise.
O Difference to Greenwich time (GMT) in hours +0200
P Difference to Greenwich time (GMT) with colon between hours and minutes (added in PHP 5.1.3) +02:00
T Timezone abbreviation EST, MDT …
Z Timezone offset in seconds. The offset for timezones west of UTC is always negative, and for those east of UTC is always positive. -43200 through 50400
Full Date/Time
c ISO 8601 date (added in PHP 5) 2004-02-12T15:19:21+00:00
r » RFC 2822 formatted date Thu, 21 Dec 2000 16:01:07 +0200
